Knob Automatic Pump Control

EPC-16 Knob Pressure Adjust 1.0-3.0bar Automatic Electronic Pump Pressure Controller

EPC-16 is the new patent pump controller by Monro. Its key highlight is tooless (manual knob) starting prssure adjust from 1.0 to 3.0bar. Easy to operate. Automatic start and stop for water pump in the water system line to avoid the dry-running operation. 180º pump-pipe connection.

No previous article | No next article

+ Contact us

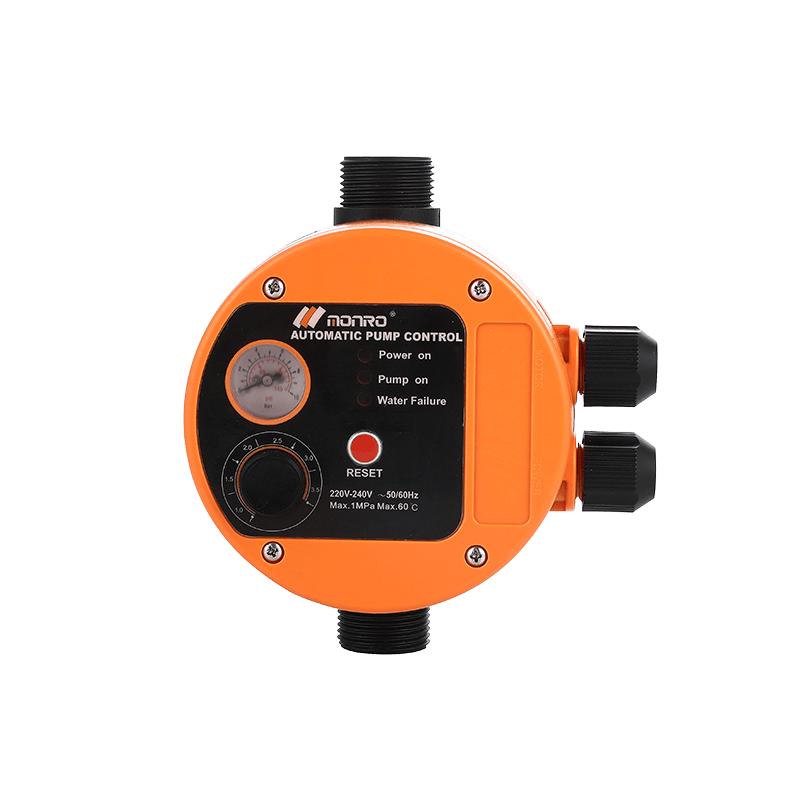

AUTOMATIC PUMP CONTROLLER

EPC-16

EPC-16 is the new patent pump controller by Monro. Its key highlight is tooless (manual knob) starting prssure adjust from 1.0 to 3.0bar. Easy to operate.

Temperature Resistance
Energy Conservation
G1"Connection Thread
Security

EPC-Series AUTOMATIC PUMP CONTROLLER

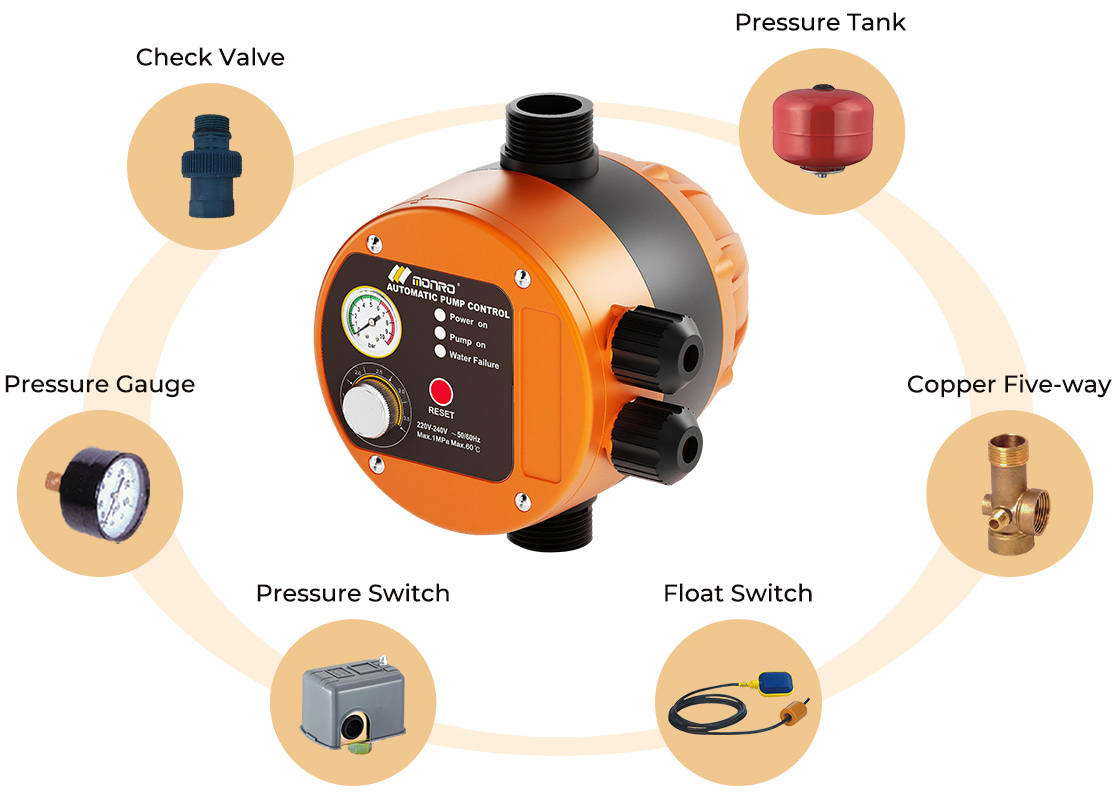

ESSENTIALLY REPLACES SIX DEVICES

In tradition water pump control system,
making the plumbing in your home less complicated.

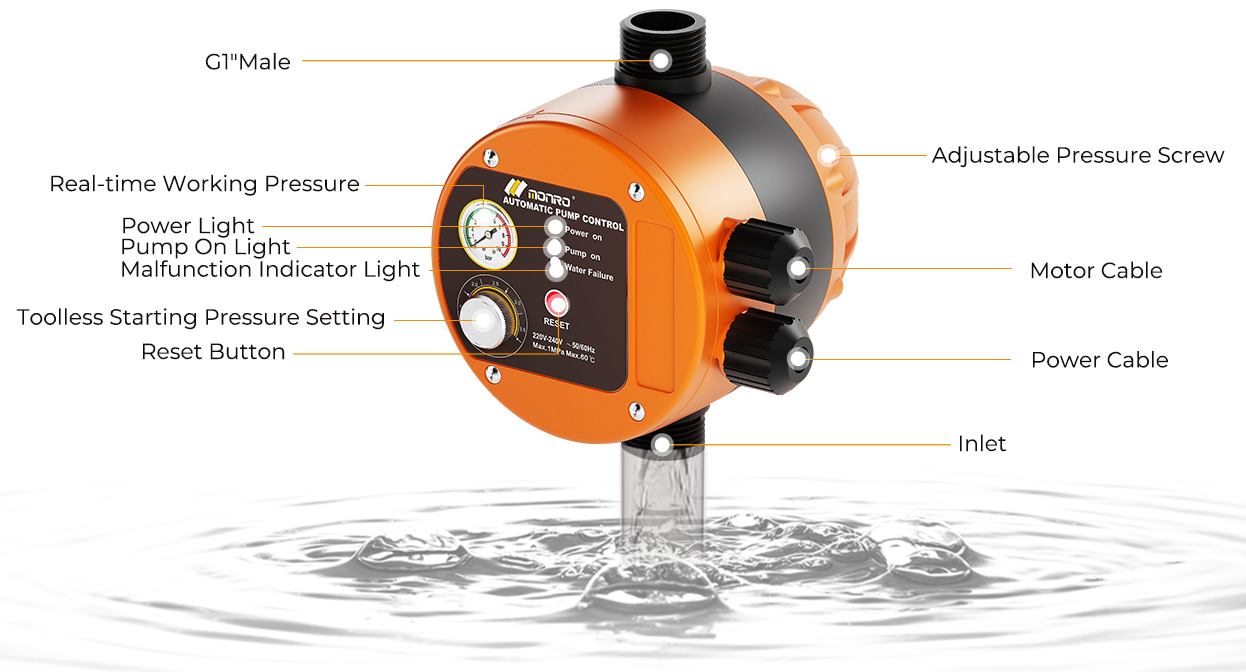

Detail Product Structure Analysis

Common Specification
Power frequency: 50/60Hz Max working pressure: 10bar Built With Pressure Gauge Built With Smart Program Starting pressure setting: 1.0bar, 2.0bar,2.5bar, 3bar factory setting starting pressure 1.0bar		Protection rating: IP65 Max current: 10A for 1.5kw (2HP) Max working temperature: 60 deg C Max. power: 1.5kW (2HP) Connections: G 1inch

LED Control Panel Indicators Power: Green LED light Pump on: Yellow LED light Failure: Red LED light Reset button for manual start after water failure

Specifications And Dimensions
Model: EPC-16 W/O cable Box size (cm): 16×17×16	Carton size (cm): 49.5×35.5×34 QTY/CTN: 12PCS		N.W (kg): 12.5 G.W (kg): 14.5

Model: EPC-16 with cable Box size (cm): 16×17×17.5	Carton size (cm): 49.5×35.5×37 QTY/CTN: 12PCS		N.W (kg): 17 G.W (kg): 19

Customization Optional configuration
for EPC-16 model

Rated Voltage: 220-240V, 110-120V

EPC-Series SUITABLE FOR
ALL KINDS OF PUMPS

Many pumps now come bundled with a pressure controller, and some may even be pre-installed, streamlining the process of getting your pump and pump controller up and running.

Innovate Product SMART PROGRAM


Model	Upgrade version	Regular version
Forced start	3s	10s
Stop with pressure keeping	Auto-stop after 3s	Auto-stop after 10s
Drying runner protection	No water, stop after 15s	No water, stop after 10s
Automatic restart in case of water failure	Self-start 15s/15mins, after 4times cycle change to self-start 15s/1h.
Impeller anti-seize protection	24h no using, auto-run 10s
Pipeline leakage protection	Red light indicate twinkles twice and pauses for 2s (repeat in cycle)
Flow switch jammed protection	Red light indicate twinkles once and pauses for 2s (repeat in cycle)
