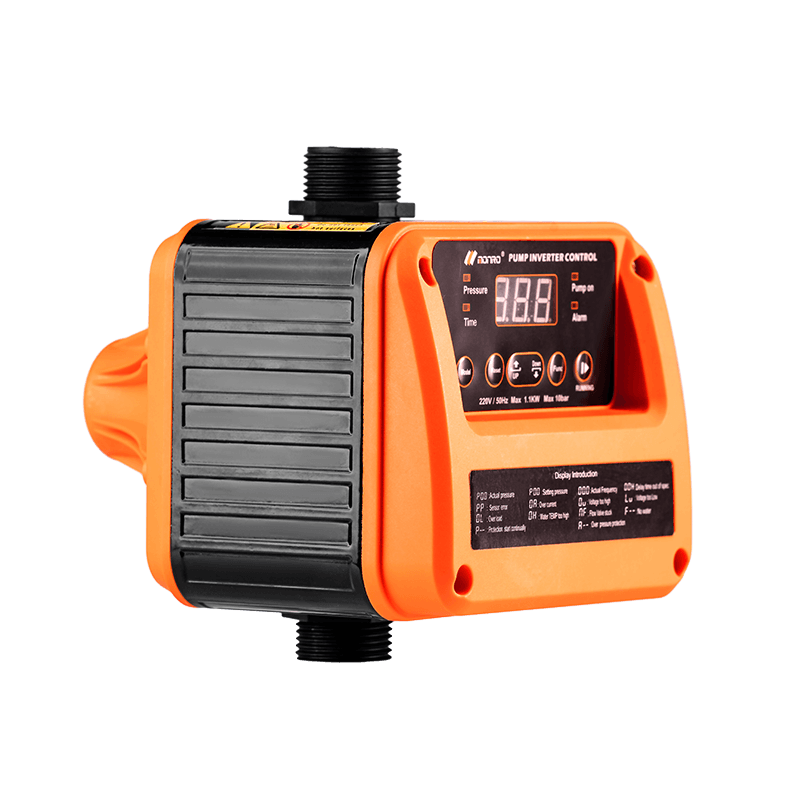

IPC-01 VFD Muti-Function With Energy Saving Inventer Pressure Controller Variable Frequency Drive

Monro IPC (Inverter Pump Control) series, is also called VFD (Variable Frequency Drive) pump control,it works to control how a pump is used. The variable frequency drive ensures it supplies a CONSTANT PRESSURE - within the ability of the pump - according to the flow rate. The inverter pump control can be treated as the pump “protector”, which increase the lifespan of a pump. Firstly, its soft starting comes to reduce wear and tear on the pump. Secondly, variable frequency drive can save energy due to the reduced use of the pump, resulting in less money spent on electricity. Thirdly, its multi-protection functions promise a good performance of a control. So choose an inverter pump control is vitally important.

No previous article   |   No next article

+ Contact us
AUTOMATIC PUMP CONTROLLER
IPC-01
Monro IPC (Inverter Pump Control) series, is also called VFD (Variable Frequency Drive) pump control, it works to control how a pump is used. The variable frequency drive ensures it supplies a CONSTANT PRESSURE - within the ability of the pump - according to the flow rate.
  • Zhejiang Monro M&E Co., Ltd. Temperature Resistance
  • Zhejiang Monro M&E Co., Ltd. Energy Conservation
  • Zhejiang Monro M&E Co., Ltd. G1"Connection Thread
  • Zhejiang Monro M&E Co., Ltd. Security
EPC-Series AUTOMATIC PUMP CONTROLLER

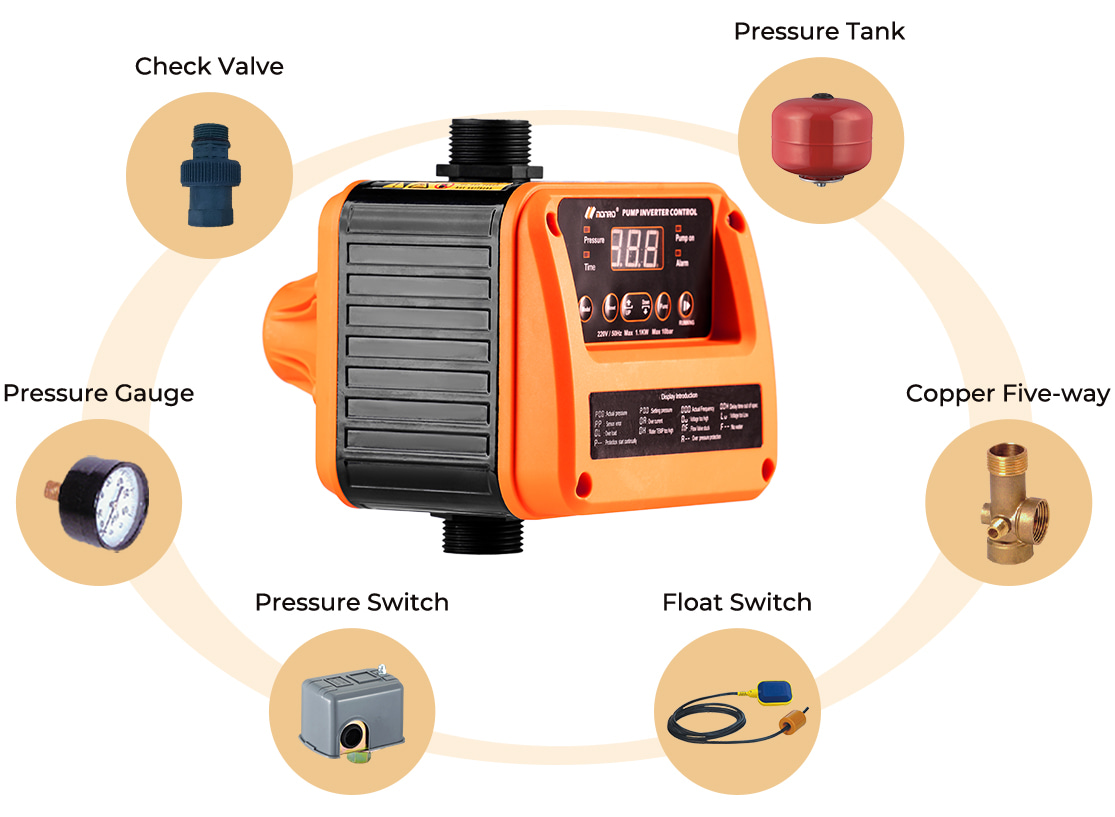

ESSENTIALLY REPLACES SIX DEVICES

In tradition water pump control system,
making the plumbing in your home less complicated.

Zhejiang Monro M&E Co., Ltd.

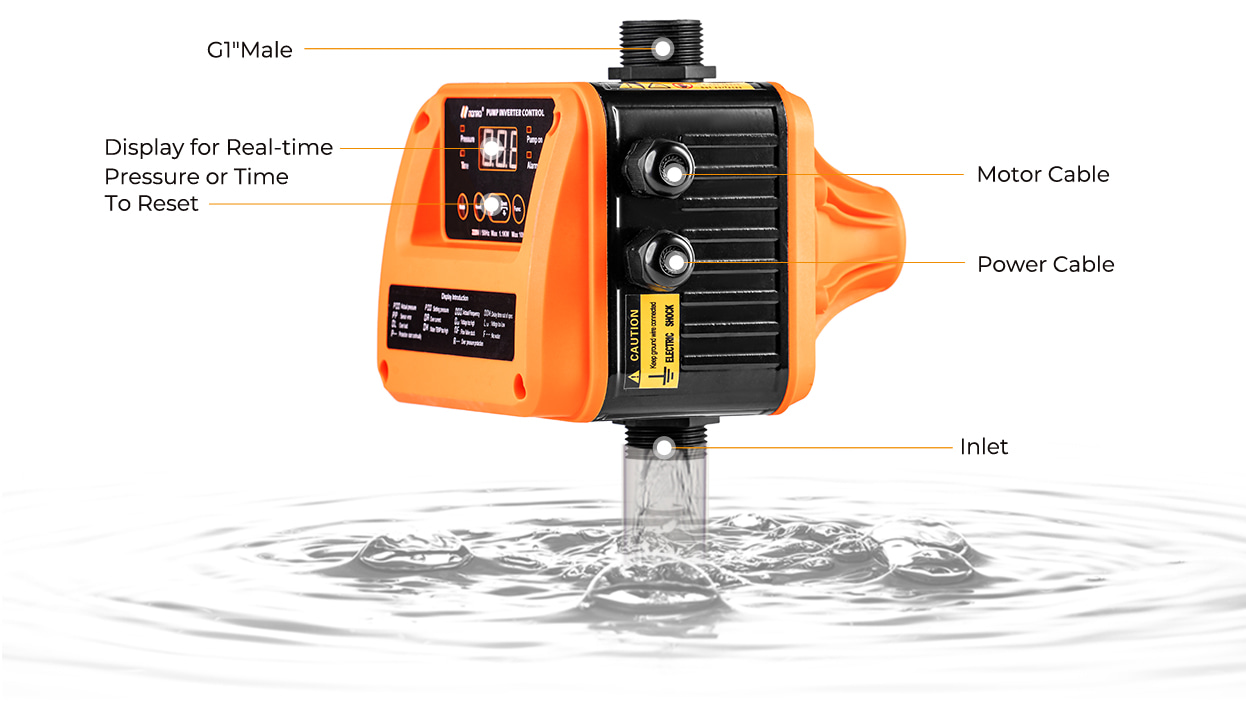

Detail Product Structure Analysis
Zhejiang Monro M&E Co., Ltd.
Common Specification

Power frequency: 50Hz

Starting pressure setting: 0.5-9.5bar

Max working pressure: 10bar

Rated voltage: 220V

Built-in digital screen for real-time pressure indicator

Protection rating: IP54

Min flow: 1L/min

Max working temperature: 55 deg C

Max. power: 1.1kW

Connections: G 1inch

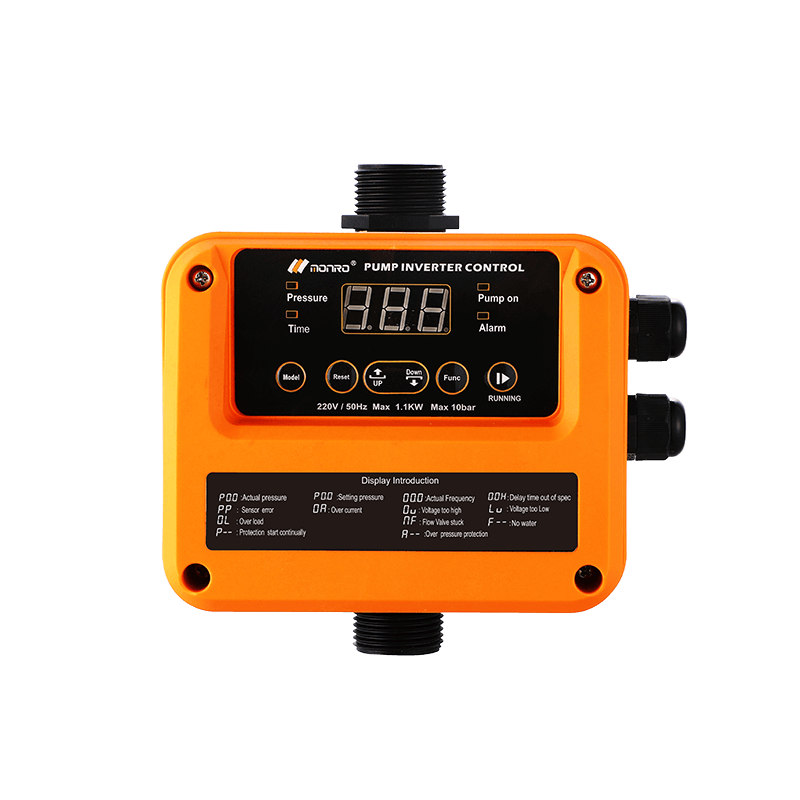

Digital Screen Control Panel Indicators

Pressure & time: Green LED Light

Pump on: Yellow LED Light

Alarm: Red LED Light

Model: To switch the modes between “Pressure” & “Time”

Reset button for manual start after water failure

Running: Manual bottom for start and stop the controller
(After installation, to press “RUNNING” for start)

Up & down: To adjust constant pressure setting and Time setting

Func: To switch display between pressure and current in digital screen
1. Dry running protection: will restart pump to run 12s every 20s; if water back to normal, then working as usual; if still no water, after 2times cycles, the controller will restart the pump every 1h.
2. Impeller anti-jammed protection: the controller will start the pump to run 10s every 24h (no use).
3. Pipeline leakage protection.
Specifications And Dimensions

Model: IPC-01

Box size (cm): 19.5×18.5×21

Carton size (cm): 56.5×40×23

QTY/CTN: 6PCS

N.W (kg): 12

G.W (kg): 14
Customization Optional configuration
for IPC-01 model

- Max. 35% Energy savings
- Improved control
- Reduced wear and less maintenance
- Reduced stress on pipe-work, valves and associated system
- Better pump protection
Zhejiang Monro M&E Co., Ltd.
EPC-Series SUITABLE FOR
ALL KINDS OF PUMPS

Many pumps now come bundled with a pressure controller, and some may even be pre-installed, streamlining the process of getting your pump and pump controller up and running.



Zhejiang Monro M&E Co., Ltd.
Quality AUTHORITATIVE INSTITUTIONS
MULTIPLE CERTIFICATIONS
Zhejiang Monro M&E Co., Ltd.
