Water Pump Pressure Switch

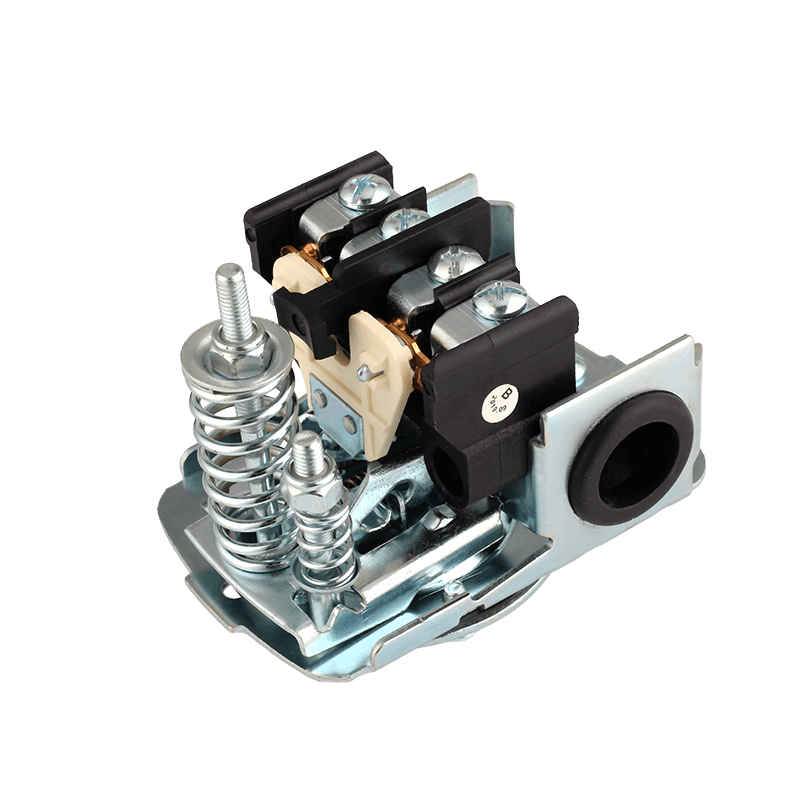

KRS-3 110-240V Female / Male Screw Size Mechanical Water Pump Pressure Switch
KRS-3 is a Electromechanical Pressure Switch for domestic water pump, made of high-quality materials, which is suitable for installation on the top of water pumps, can automatically control the start and stop of the pumps according to its cut-in and cut-out pressure setting. Due to its reliable structure design, it has stable performance and can effectively protect the pumps.
- Category
-
Hot Products
-
KRS-3
KRS-3 is a Electromechanical Pressure Switch for domestic water pump, made of high-quality materials, which is suitable for installation on the top of water pumps, can automatically control the start and stop of the pumps according to its cut-in and cut-out pressure setting.
-
Pressuer Adjustable
-
Auto Start Auto Stop
-
Water Shortage Protection
-
Water-proof Design
Automatic control no manual operation is required.
| Common Specifications
Material: Metal, Plastic Rated voltage: 110V/240V Max. current: 12A/6A Min. cut-in: 20PSI Max. cut-out: 100PSI Pressure switch differential: 20 to 30PSI Protection rating: IP20 Max. working temperature: 55 deg C |
Features
- Pressure Switch Application: water pumps - Made of high quality materials for strong strength and long durability - Suitable for water pumps, such as self-priming water pump, injection water pump, garden water pump, etc. |
||||||||||
|
|||||||||||
for KRS-3 model
|
Pressure Range: 20-40PSI, 30-50PSI, 40-60PSI, 50-70PSI Flange: Plastic or Steel Base Color: White plated or color plated |
Cover Color: Grey or Black Certificate Standard: CE or UL |
|
Connection Tread: G1/4" Male, NPT1/4" Male, G1/4" Female fixed, G1/4" Female Rotary, G3/8" Female fixed, G3/8" Female rotary |
|
ALL KINDS OF PUMPS
Many pumps now come bundled with a pressure controller, and some may even be pre-installed, streamlining the process of getting your pump and pump controller up and running.
Quality
AUTHORITATIVE INSTITUTIONS
MULTIPLE CERTIFICATIONS
MULTIPLE CERTIFICATIONS
