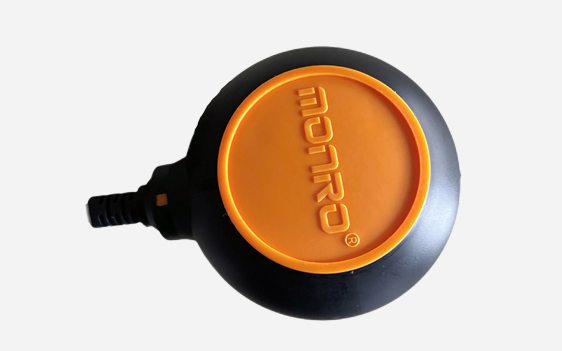

FPS-4 With Counter Weight & Cable Traditional Float Switch For Water Tank Float Sensor Switch

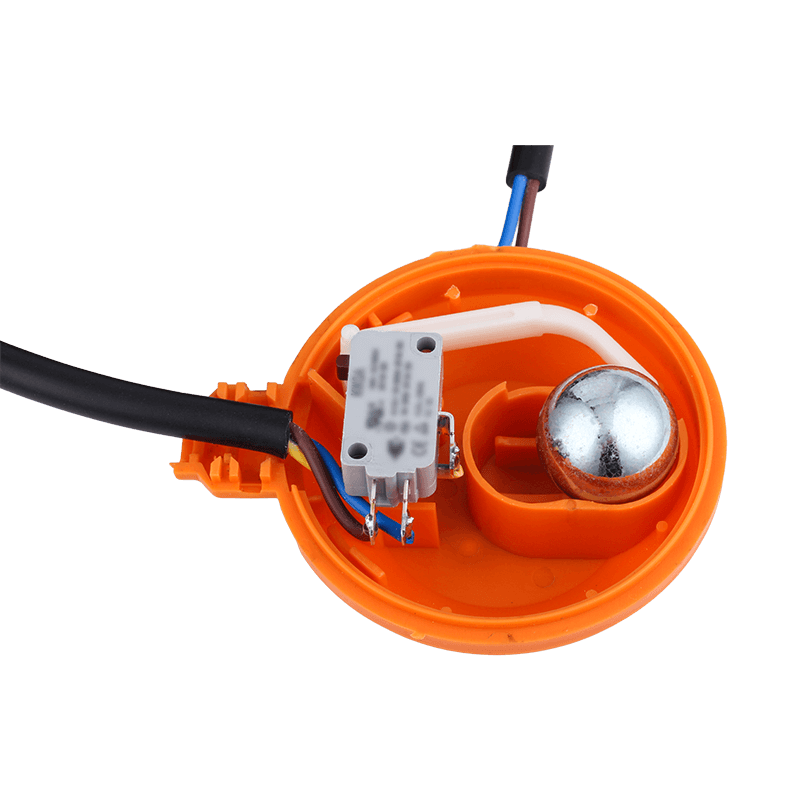

FPS-4 is one of Monro float switch, which is a device used to detect the level of liquid within a tank. This dual purpose 3 wire float switch can be used for both emptying or filling operations. It may be used to control a pump, as an indicator, an alarm, or to control other devices. This type of float switch that raises a rod to actuate a micro-switch.

No previous article   |   NEXT

+ Contact us
Cable float level switch
FPS-4
FPS-4 is one of Monro float switch, which is a device used to detect the level of liquid within a tank. This dual purpose 3 wire float switch can be used for both emptying or filling operations.
  • Zhejiang Monro M&E Co., Ltd. Water Supply Control
  • Zhejiang Monro M&E Co., Ltd. Drainage Control
  • Zhejiang Monro M&E Co., Ltd. Water Shortage Protection
  • Zhejiang Monro M&E Co., Ltd. Security And Reliability

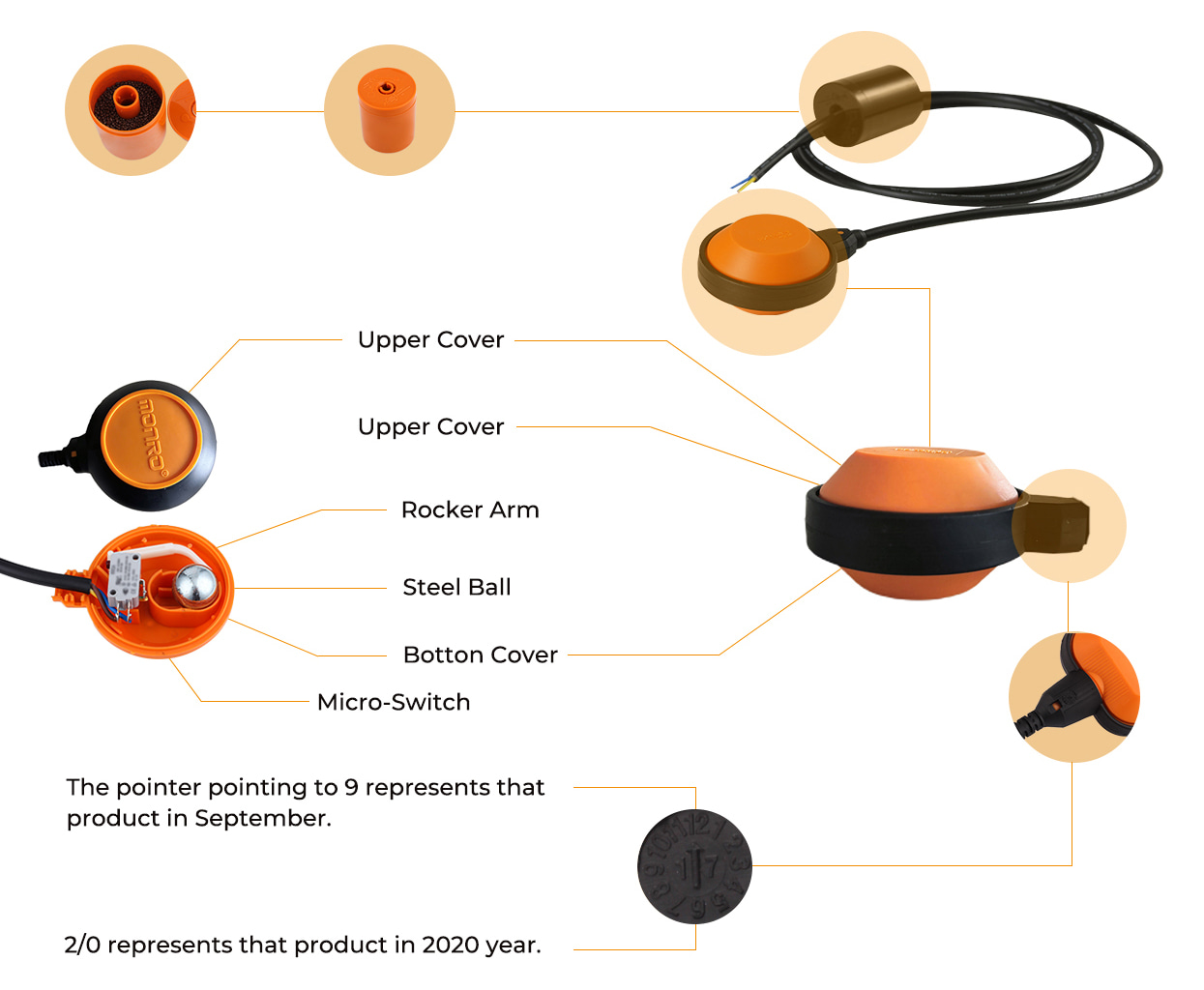

FPS-Series LIQUID LEVEL FLOAT SWITCH

Full automatic regulation control Sensitive control, simple operation, all copper core.

Zhejiang Monro M&E Co., Ltd.
FPS-Series LIQUID LEVEL FLOAT SWITCH
1
Float Level Controller

Thickening cable protector to protect the cable core from bad environmental damage effectively and increase the antiaging ability.

2
Counter Weight

Play a role in supporting fixed and fixed cable; More stable and convenient.

3
High Cable

Different cable size can choose.

4
High Quality Copper

Good electrial conductivity; More durable.

Specification

Rated Voltage:250V

Frequency:50/60Hz

Rated Current:16(8)A

Protection Rating:IP68

Max. Working Temperature:55 deg C

 Optionals

-Single function or double function

-Color as customer require

-Cable length as customer require (2m, 3m, 5m etc)

-Cable material as customer require (PVC or RUBBER)

-Cable size as customer require (3x1.0mm²recommended)
Descriptions
Cable Length QTY /CTN Box size (cm) Carton size (cm) N.W (kg) G.W (kg)
2M 20PCS 22x8x11 45x42x24 11.5 13
3M 20PCS 22x8x11 45x42x24 13 15
5M 20PCS 22x8x11 45x42x24 16.5 18.5
10M 10PCS 21.7x6.7x24 45x35.5x25.5 14 16
20M 10PCS 26x8x26 53.5x42.5x27.5 25 27
Application AVAILABLE IN 4 STYLES
FPS-Series PRODUCT OPERATING PRINCIPLE
Zhejiang Monro M&E Co., Ltd.



Quality AUTHORITATIVE INSTITUTIONS
MULTIPLE CERTIFICATIONS
